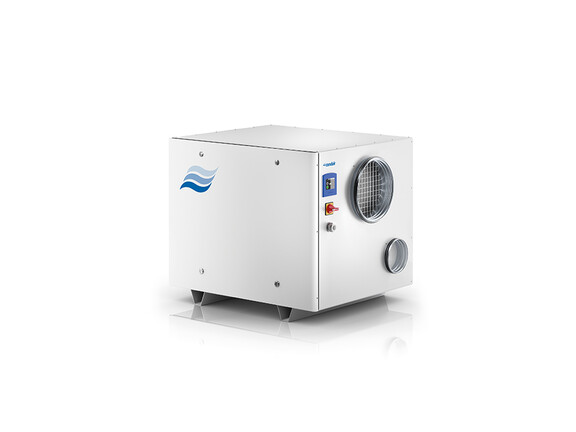

Condair DA Desiccant Dehumidifier

Q: What are the capacities and operating ranges of the Condair DA 300N-2400N units?

The Condair DA Series covers a range from the DA 300N through the DA 2400N, with capacities from approximately 7.3 lb/h to 44.1 lb/h (3.3–20 kg/h) of moisture removal. These units are specifically designed for applications requiring very low humidity levels (10–20% RH) and can operate in ambient temperatures ranging from 41 to 104°F (5 to 40°C).

Interested in the Condair DA?

Condair DA Desiccant Dehumidifiers

Desiccant Dehumidification

Condair DA 300N–2400N desiccant dehumidifiers provide precise humidity control down to 10% RH or lower and operate reliably across a wide temperature range. Their durable insulated cabinet, engineered construction, and advanced control system ensure dependable, energy-efficient performance in demanding industrial environments.

Condair DA 300N-2400N Desiccant Dehumidifier

Benefits Product details Downloads FAQs

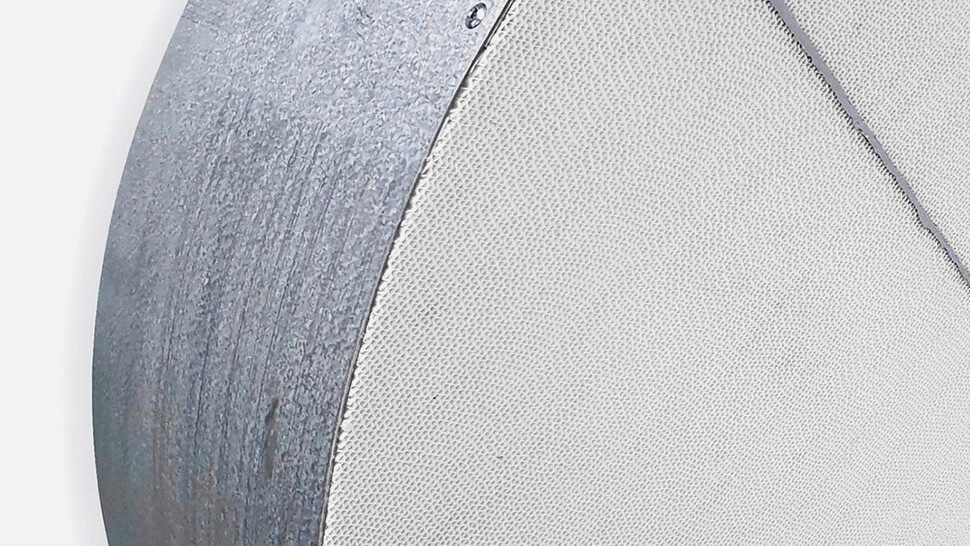

High-performance desiccant rotor

The desiccant rotor consists of a honeycomb structure made of fiberglass, coated with highly hygroscopic silica gel. Its flutes provide a vast internal surface area for efficient and effective moisture adsorption. Silicone-free, non-flammable, and largely maintenance-free, it is paired with self-regulating PTC heaters that prevent overheating and ensure safe, reliable operation without the risk for thermostat cutouts.

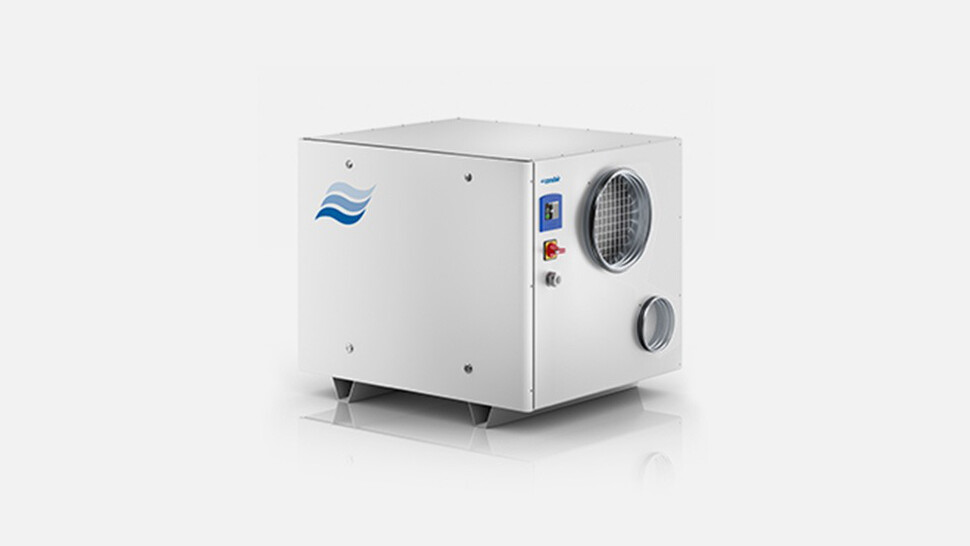

Quiet, efficient, reliable

The Condair DA 300N-2400N range features a fully insulated, double-walled Magnelis® housing with 30 mm mineral wool for quiet, efficient operation. Optional AISI 304 stainless steel housing is available. Premium radial fans in a push configuration move regeneration and process air over the rotor under positive pressure, ensuring reliable operation even at very low humidity levels.

Tailored drying solutions

The Condair DA 300N - 2400N range adapts to your drying needs, offering PLC with touch screen, pre- and post-cooling, heat recovery and electrical. Special configurations for extremely low dewpoints are possible. Network integration via Modbus or BACnet ensures seamless industrial or commercial operation.

Reliable Push Fan

The push fan configuration enhances reliability by keeping the regeneration fan away from humid, hot air, reducing strain and ensuring long-term stable operation.

Site-Adaptive Cooling Coils

Pre- and post-cooling coils can be mounted directly on the unit or in separate modules, adapted to site-specific requirements, enabling large dehumidification deltas in a single pass.

Safe Service Access

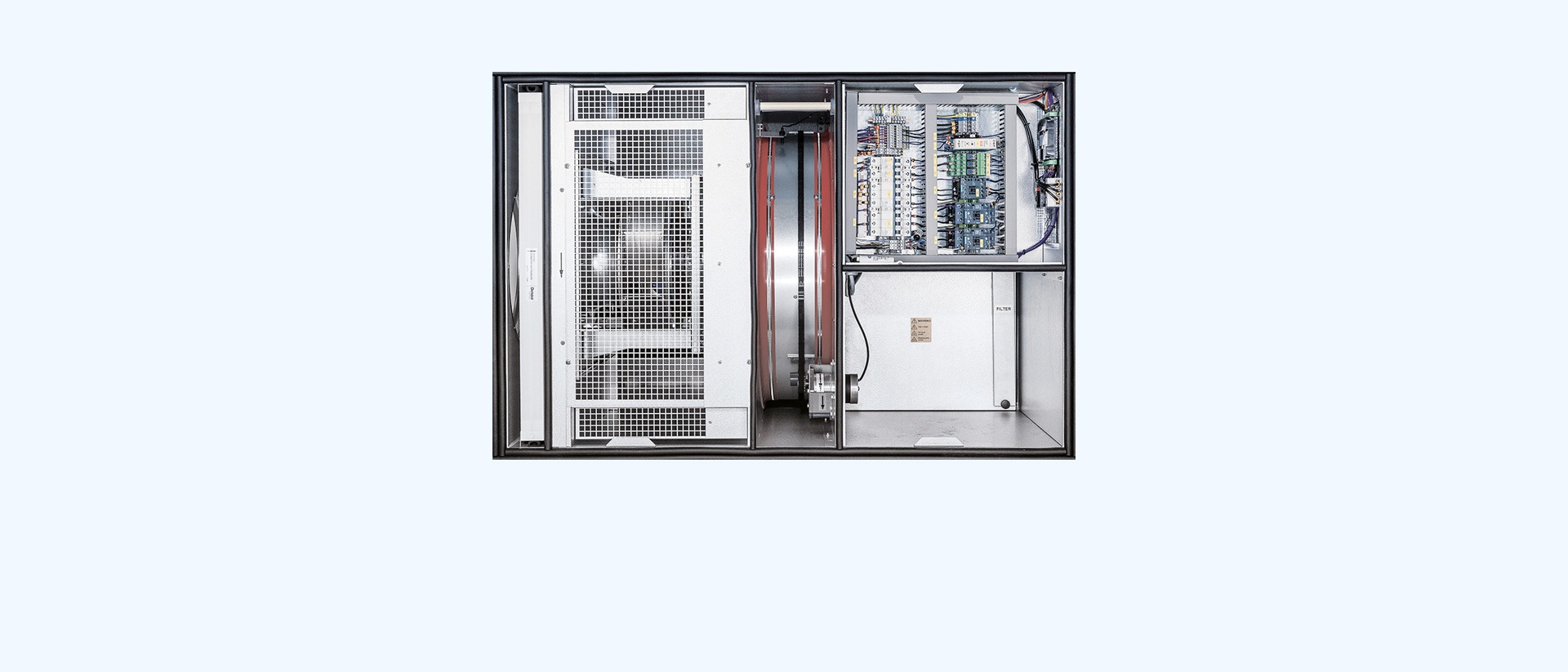

All critical components are easy to remove, filters are replaceable, and the vertical rotor design ensures low height, optimal load distribution, and high operational safety.

Double-walled housing

Efficient fans

Highly efficient adsorption rotor

Extensive regulatory options

Downloads

Product Brochure

DA Desiccant Dehumidifier Brochure en us document · 1.9 MB

Installation & Operations Manual

Condair DA 500 - 4000 Installation and Operation Manual EN document · 998.8 KB

See all downloads

Buy Condair Spare Parts

Spare Parts

Condair will help you identify exactly which component you need and ensure you receive it quickly and efficiently.

Frequently asked questions

What accessories and customizations are available for the Condair DA 300N-2400N units?

The Condair DA 300N-2400N dehumidifier offers a wide range of options to adapt to specific customer requirements. Available accessories include pre- and/or post-cooling coils mounted on the unit or in separate modules. Additional options include stainless steel housing, outdoor installation, humidity and temperature sensors, and Modbus TCP/IP, RTU, or BACnet connectivity.

What are the capacities and operating ranges of the Condair DA 300N-2400N units?

What control options are available on the Condair DA 300N-2400N?

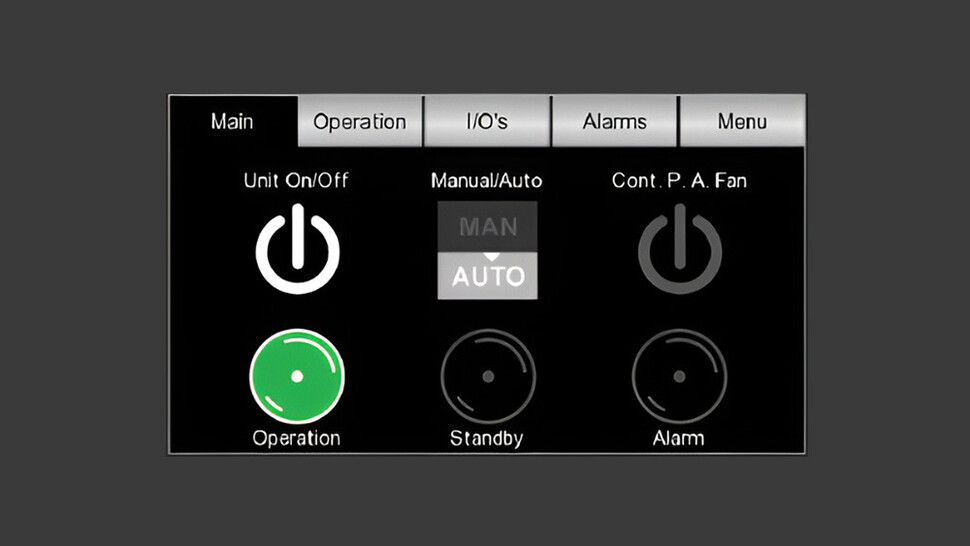

The Condair DA 300N–2400N desiccant dehumidifiers feature an integrated PLC controller with a touchscreen interface for simple operation, monitoring, and diagnostics. Units can be controlled using external humidity sensors, external enable signals, or a 0–10 V control signal for precise humidity management. For seamless integration into building management systems, Modbus communication is provided as standard, with BACnet and other communication protocol options available.
