Condair DL Hybrid Adiabatic Evaporative Humidifier

Q: How is water quality ensured during operation of the Condair DL?

The Condair DL uses demineralized water, typically provided by a reverse osmosis system. This prevents mineral deposits, ensures consistent humidification performance, and significantly reduces maintenance efforts.

Q: What control options does the Condair DL offer?

The Condair DL system features an integrated control unit with a touch display and can be seamlessly integrated into modern building management systems (BMS). This allows for easy monitoring, regulation, and maintenance.

Q: What types of applications is the Condair DL best suited for?

The Condair DL is ideal for HVAC systems in hygiene-sensitive environments such as hospitals, museums, laboratories, and office buildings. Its combination of high-performance humidification and certified hygiene makes it a preferred choice in demanding applications.

Interested in the Condair DL?

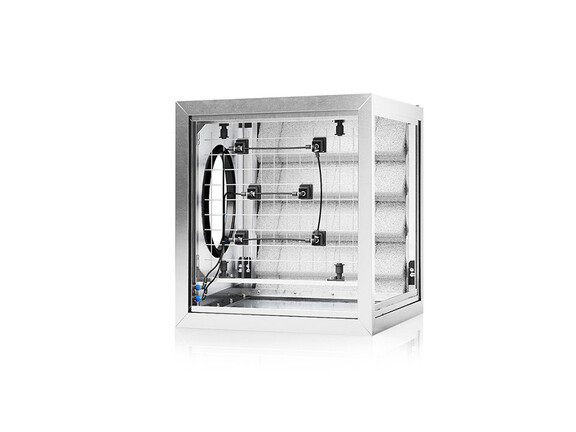

Condair DL

Hybrid Adiabatic Evaporative Humidifier

The Condair DL represents the next generation of adiabatic air humidification combining advanced technology with proven performance. Its hygienic credentials have proven successful in practice and were verified and certified by independent organizations with public responsibility.

Condair DL Hybrid Humidifier

Top of page Features Product details Downloads FAQs References

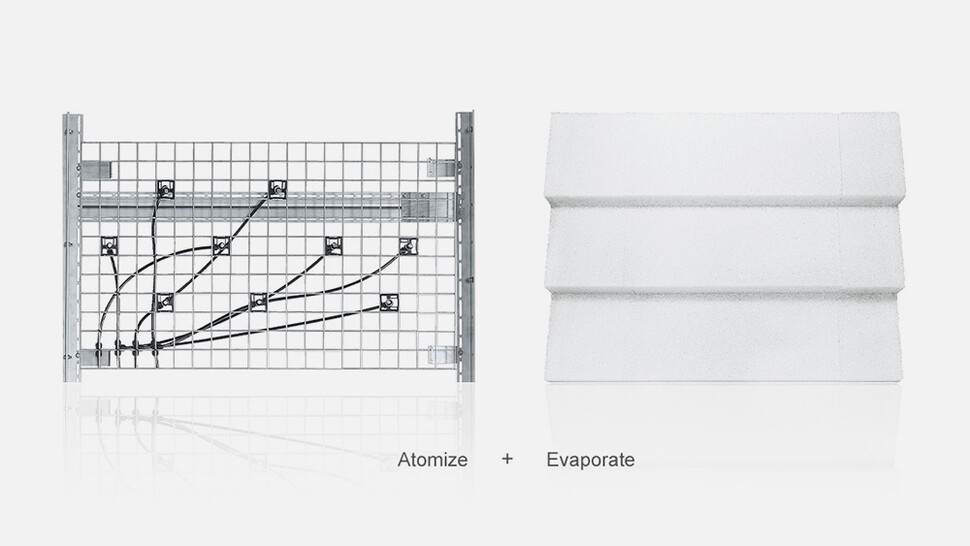

Two Adiabatic Methods, Intelligently Combined

The adiabatic humidifier Condair DL relies exclusively on the advantages of the two types of humidification, atomization and evaporation. This provides a sustainable solution to central problems that can arise when these techniques are used in isolation.

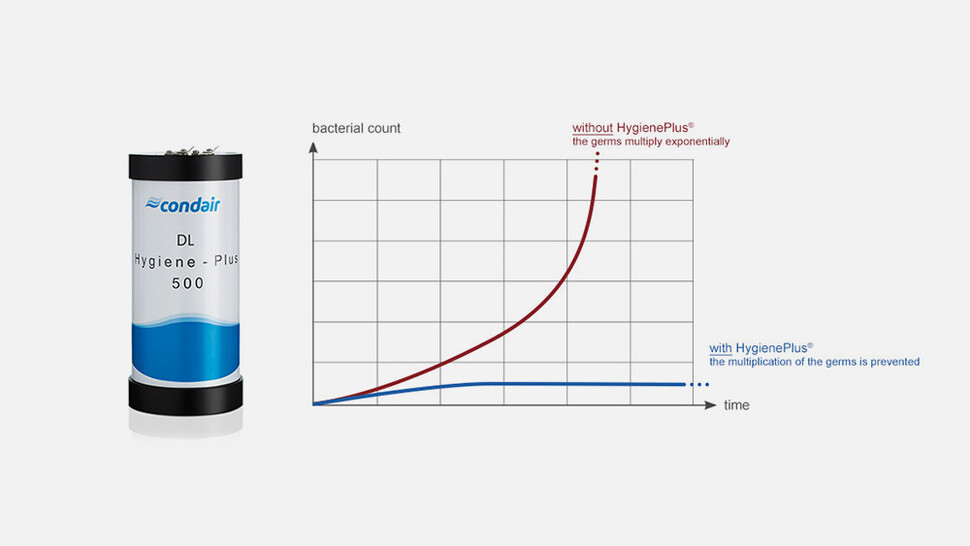

HygienePlus® Method

The HygienePlus® process prevents the formation and spread of germs and pathogens in air conditioning systems and humidifiers. Since even drinking water is not germ-free, biofilms and microorganisms can otherwise form there. Through targeted hygiene measures, the process ensures clean, healthy air at all times.

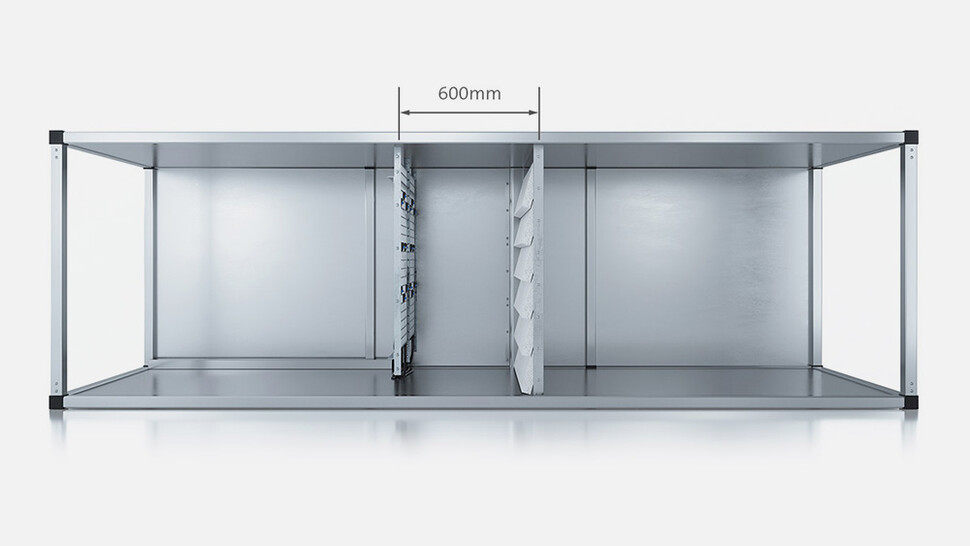

Extremely Short Installation Length

Low-pressure systems generally get by with a significantly shallower design depth than high-pressure humidifiers. Due to the arrangement of the evaporator ceramics so that they cover the full area, and as a result of the spray cone of the molecular diffuser nozzles, the entire overall depth of the Condair DL can be reduced to up to 23.6 in.

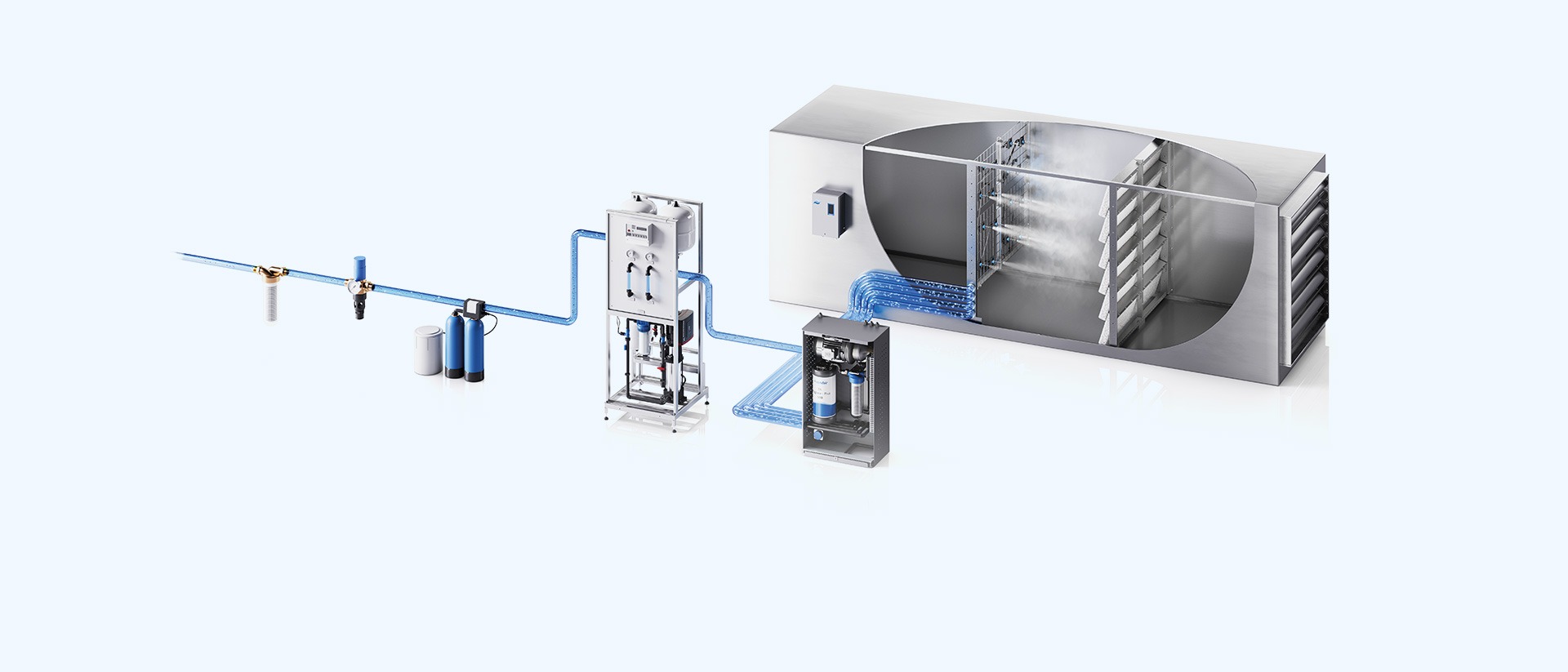

System structure Hybrid humidifier

Professional planning is the basis for functional quality and energy efficiency. We are happy to assist you in the planning phase.

System structure Hybrid humidifier

Fine filter

System structure Hybrid humidifier

Pipe disconnector

System structure Hybrid humidifier

Softener

System structure Hybrid humidifier

Reverse osmosis

System structure Hybrid humidifier

Control unit

System structure Hybrid humidifier

Hygieneplus®

System structure Hybrid humidifier

Atomizer unit

System structure Hybrid humidifier

Evaporator unit

Downloads

Buy Condair Spare Parts

Spare Parts

Condair will help you identify exactly which component you need and ensure you receive it quickly and efficiently.

Frequently asked questions

How is water quality ensured during operation of the Condair DL?

What control options does the Condair DL offer?

What types of applications is the Condair DL best suited for?

Discover Condair in action

Projects and References

ADAC Center, Munich

In March 2012, ADAC's new headquarters officially opened for business after six years of construction. Since December 2011, the office has been home to some 2,400 employees in over 100 professions, who were previously spread out across seven different locations. Bringing them all together in one place will encourage innovative ways of working, improve the speed of business processes, and simplify member services.

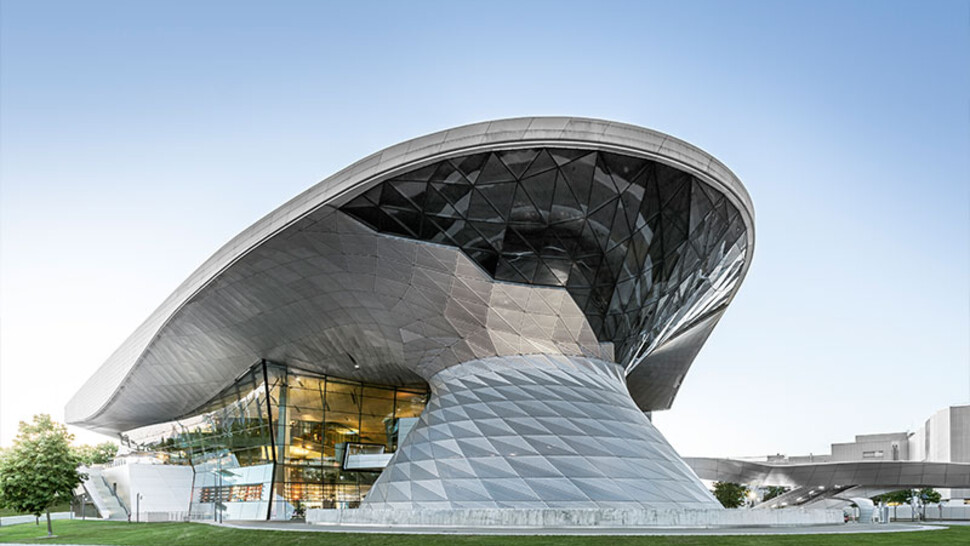

BMW Welt

BMW World is located in an important location in Munich between the BMW four-cylinder and the Olympic Park. It was opened in October 2007 and has since provided space for exhibitions, the delivery of new vehicles and events.The open design was developed by the architects Himmelb(l)au and is characterized by the striking double cone at the southern tip of the building. This has a diameter of 40 meters, is around 30 meters high andmade of 680 tons of steel. Condair DL hybrid humidifiers are used to provide visitors and employees with a pleasant and hygienic room climate.

Paul Klee Museum, Bern, Switzerland

The Kunstmuseum, Zentrum Paul Klee, is located in Bern, Switzerland, in the immediate vicinity of the Schlosshalde cemetery, where Paul Klee™s grave can also be found. The building is dominated by curved arches that blend harmoniously into the surrounding hilly landscape. It houses the comprehensive work of the Paul Klee Foundation and reflects the artist™s complexity through the division into three hills. The North Hill is dedicated to practical art education, conferences, and workshops. The Central Hill is used for collection presentation and temporary exhibitions, the South Hill for research and administration. Condair™s DL hybrid air humidifiers create an optimum indoor climate for visitors and the sensitive works of art.

Foundation Michalski, Switzerland

An ideal work site for literature and literati - that was the vision that Vera and Jan Michalski wanted to achieve with the Maison d'ecriture. It is located at the foot of the Vaud Jura Mountains, in the Bois Ditsert in Montricher, with a view of Lake Geneva and the Alps. The site was chosen for its scenic beauty and the quiet surroundings that are supposed to have a positive effect on writers' activities and inspire them to reflect. This location has a very special appeal and a unique atmosphere. Architects V. Mangeat and P. Wahlen were tasked with designing the architecture of the object. They created several buildings for the foundation's numerous activities that fit perfectly into the surrounding nature and form a kind of settlement. Individual living spaces for authors, a dining room, a recreation room, a large library for research, a room with modular space for exhibitions and an auditorium for all kinds of events promise numerous encounters and brisk cultural exchange. Condair DL hybrid humidifiers ensure comfortable atmospheric humidity.

Rijksmuseum, Netherlands

The Rijksmuseum is one of the world's finest art museums with over 1.5km of galleries and artworks by Rembrandt, Vermeer and Van Gogh. The Condair DL hybrid humidifier is maintaining the ideal humidity for the preservation of paintings such as The Night Watch, The Milkmaid and The Merry Drinker.

ARoS Aarhus Art Museum, Aarhus

Condair DL hybrid humidifiers ensure optimal indoor humidity at The ARoS Aarhus Art Museum, protecting over 1,100 paintings and 400 sculptures.

The Louvre Museum

The Louvre Museum is located within the Louvre Palace in the 1st arrondissement of Paris. It houses some of the world's most famous works of Western art, including the Mona Lisa and the Venus de Milo. With approximately 783,000 sq ft of exhibition rooms and galleries, it is the largest art museum in the world, ahead of the State Hermitage Museum (719,500 sq ft) and the National Museum of China (699,700 sq ft).

Various Condair humidity control technologies (Condair DL, RS, ME, DC) help to maintain the ideal room humidity for the preservation of the exhibits and the well-being of staff and visitors.

Precise humidity protects millions of books at Bibliothèque Nationale de France

As one of the most recognisable and symbolically powerful architectural landmarks of contemporary Paris, the Bibliothèque nationale de France (Site François-Mitterrand) sets new standards in cultural design, monumental scale and preservation of knowledge. Condair is proud to contribute to this visionary institution with advanced hybrid humidification solutions that protect priceless collections, ensure visitor comfort and guarantee energy-efficient climate control.
Preserving millions of books, manuscripts, maps and artefacts demands rigorously stable climatic conditions. Optimal relative humidity “crucial for preventing damage to paper, bindings and other organic materials“ is reliably maintained by Condair DL hybrid humidifiers.

Baloise Park, Basel

Baloise Park forms an area with three buildings on which the Baloise insurance group is headquartered. The complex offers 1,300 modern office workstations, of which 700 are used for Baloise employeesand the rest are rented out. The tallest building in Baloise Park is the tower in the west, which is one of the tallest buildings in Basel at 89 meters.Part of this tower houses the 5-star Superior Hotel Mövenpick comprising 264 rooms and an exquisite bar with sun terrace.Condair steam humidifiers ensure healthy room air humidity.

Condair ensures the ideal humidity to preserve the Jewish Museum's collection

The Jewish Museum Munich relies on a Condair DL hybrid humidifier to maintain a controlled indoor environment that protects its diverse collection of cultural and historical objects. With three levels of gallery space dedicated to permanent and temporary exhibitions, the museum requires dependable humidity management to ensure artefacts remain in optimal condition throughout the year.
