Direct vs Indirect Cooling: What’s the Difference?

Article Summary

Direct cooling adds moisture to the supply air

Direct evaporative cooling lowers air temperature by evaporating water directly into the airstream.

Indirect cooling keeps moisture separate

Indirect evaporative cooling transfers the cooling effect through a heat exchanger, so the supply air is cooled without added humidity.

Both can reduce cooling energy use

Both methods can reduce reliance on mechanical refrigeration, lowering energy demand and operating costs in suitable applications.

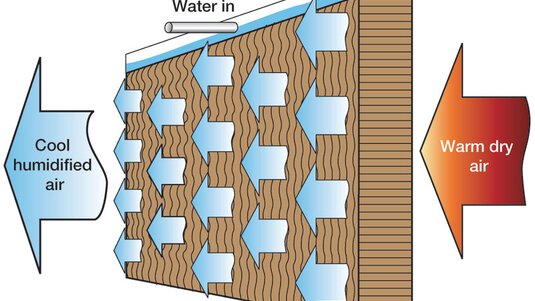

What is Evaporative Cooling?

Evaporative cooling is the process of reducing air temperature through water evaporation. As water changes from liquid to vapor, it absorbs heat from the surrounding air. This reduces the air’s dry-bulb temperature.

In HVAC systems, this process is also called adiabatic cooling. A common reference point is that approximately 690 watts of evaporative cooling can be produced when about 2.2 pounds of water per hour is evaporated into an airstream.

What is the Difference Between Direct and Indirect Cooling?

The main difference between direct and indirect cooling is whether moisture is added to the air supplied to the space.

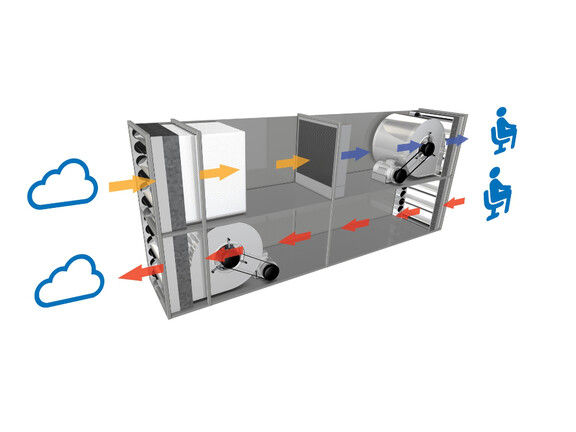

Direct evaporative cooling uses fresh outside air as the supply airstream. In the air handling unit, this outdoor air passes through wetted evaporative media or another humidification section. As water evaporates into the airstream, heat is absorbed from the air, reducing its temperature and increasing its moisture content.

The cooled, humidified air is then supplied to the occupied space. At the same time, indoor air is extracted or exhausted, allowing the conditioned outdoor air to replace warmer room air. Direct evaporative cooling is most effective when incoming air is warm and dry, because lower relative humidity allows the air to absorb more moisture and produce a stronger cooling effect.

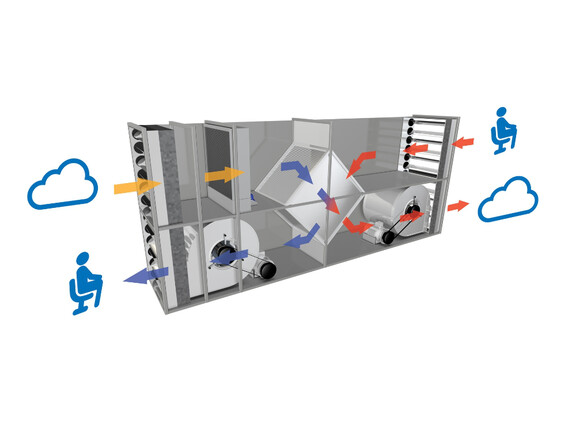

Indirect evaporative cooling uses two separate airstreams. Outdoor air passes through an evaporative cooling section, where water evaporation lowers its temperature. This cooled air then passes through a heat exchanger or heat recovery unit, where it absorbs heat from a separate supply or return airstream.

The two airstreams do not mix. The humidified air is exhausted, while the cooled supply air is delivered to the occupied space without directly adding moisture. This makes indirect evaporative cooling useful when lower air temperatures are needed but indoor humidity must remain controlled.

Direct vs. Indirect Cooling Comparison

Cooling Method

How It Works

Effect on Humidity

Best Used For

Direct Evaporative Cooling

Water evaporates directly into the supply air

Increases supply air humidity

Manufacturing, warehouses, production spaces, dry-climate

facilities and spaces where added humidity is useful

Indirect evaporative cooling

Evaporation cools a separate airstream, then

transfers cooling through a heat exchanger

Does not directly add humidity to supply air

Data centers, electronics manufacturing, food processing,

storage areas, buildings with humidity limits, and moisture-sensitive

applications

How Can Direct and Indirect Cooling Reduce Energy Costs?

Direct and indirect evaporative cooling can reduce energy costs by lowering the load on mechanical refrigeration systems. Instead of relying only on compressors, evaporative cooling uses water evaporation to absorb heat from air.

In suitable applications, this can reduce electrical demand, improve HVAC efficiency, and lower operating costs. Actual savings depend on climate, system design, airflow requirements, cooling load, operating hours, and indoor humidity limits.
