Condair JS60C Compressed Air & Water Spray Humidifier

Q: How is the JS60C humidifier installed?

Supplied with two nozzles, as standard, the unit is preassembled and ready for use. It needs to be wall-mounted, and connected to a compressed air supply, a potable water supply, single-phase power and drain.

Q: How often should the JS60C humidifier be serviced?

Routine maintenance is typically recommended every 6–12 months, depending on usage, water quality, and site conditions. Tasks include cleaning or replacing filters, checking nozzle spray patterns, verifying hygiene flush cycles, and inspecting air/water lines for leaks or blockages.

Q: What is the energy consumption?

The JS60C humidifier operates on a single-phase power supply and directly consumes only 0.17–0.21 kW (170–210 W), drawing just 0.7–0.87 A. These values exclude the power consumption of any external air compressor.

Interested in the Condair JS60C?

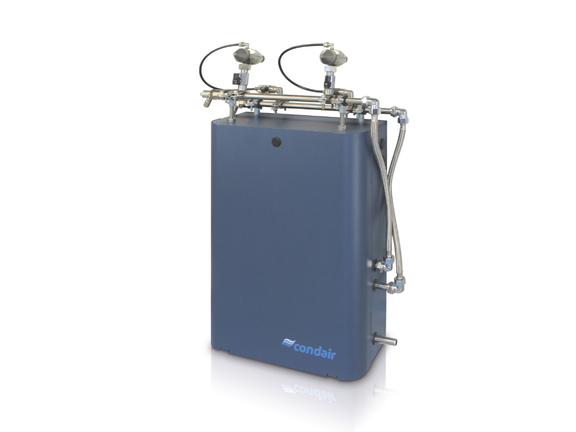

Condair JS60C

Compressed Air & Water Spray Humidifier

Delivered fully assembled, with two nozzles as standard, the JS60C humidifier is a simple way to deliver up to 66lb/h of humidity directly to an atmosphere.

The use of compressed air to atomize the water allows the humidifier to operate without a fan, making it ideal for use in very dusty, industrial environments. Compressed air also provides highly directional aerosol plumes without any gravitational drop, and a very short evaporation distance.

JS60C Compressed Air & Water Spray Humidifier

Top of page Overview Features Product details Downloads FAQs References

Easy to Install

As the humidifier is delivered pre-assembled, it does not require any installation of additional spray head lines or associated piping. This makes the system very easy to install, reducing costs and project complexity.

The unit simply needs to be wall-mounted with local connections for compressed air, water, drain and single-phase power.

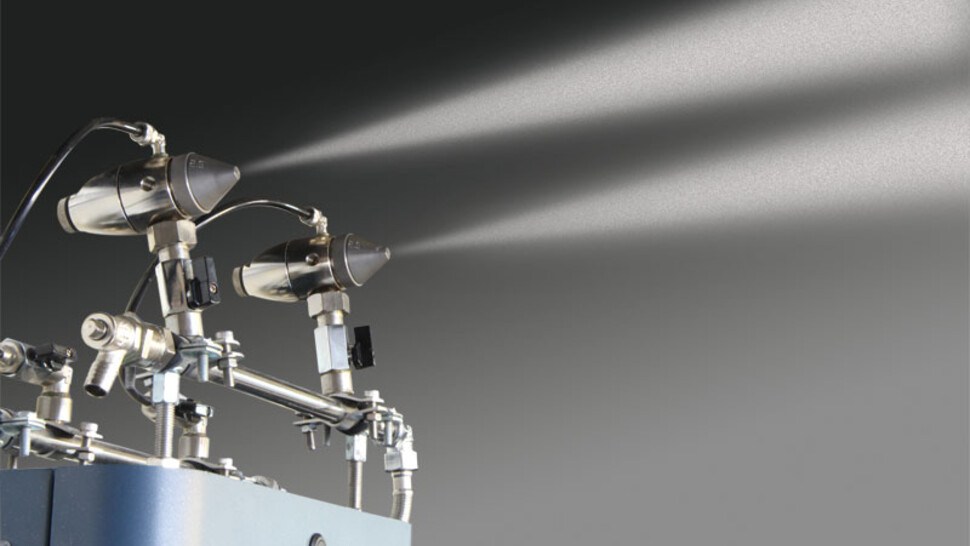

Self-Cleaning Nozzles

The JS60C nozzle uses a self-cleaning pin that prevents blockages by moving through the orifice after each spray cycle. As it is pushed back by the water pressure during operation, it requires no lubrication, unlike piston-driven systems.

Hygienic by Design

Routine flush and drain cycles ensure water cannot remain in the system to stagnate. An air run-on feature leaves the piping dry at the end of the cycle for maximum protection.

An antibacterial filter treats the incoming water for added protection. This bacteriostatic system provides a lasting cleansing effect throughout the humidifier. An optional ultraviolet water sterilizer can also be incorporated on the incoming water supply to inactivate pathogens and viruses.

Low Water Consumption

As the JS60C humidifier can operate on potable municipal water, it eliminates the wastewater sent to drain from RO water treatment systems. This not only saves money on water consumption but also energy and maintenance costs from associated water treatment systems.

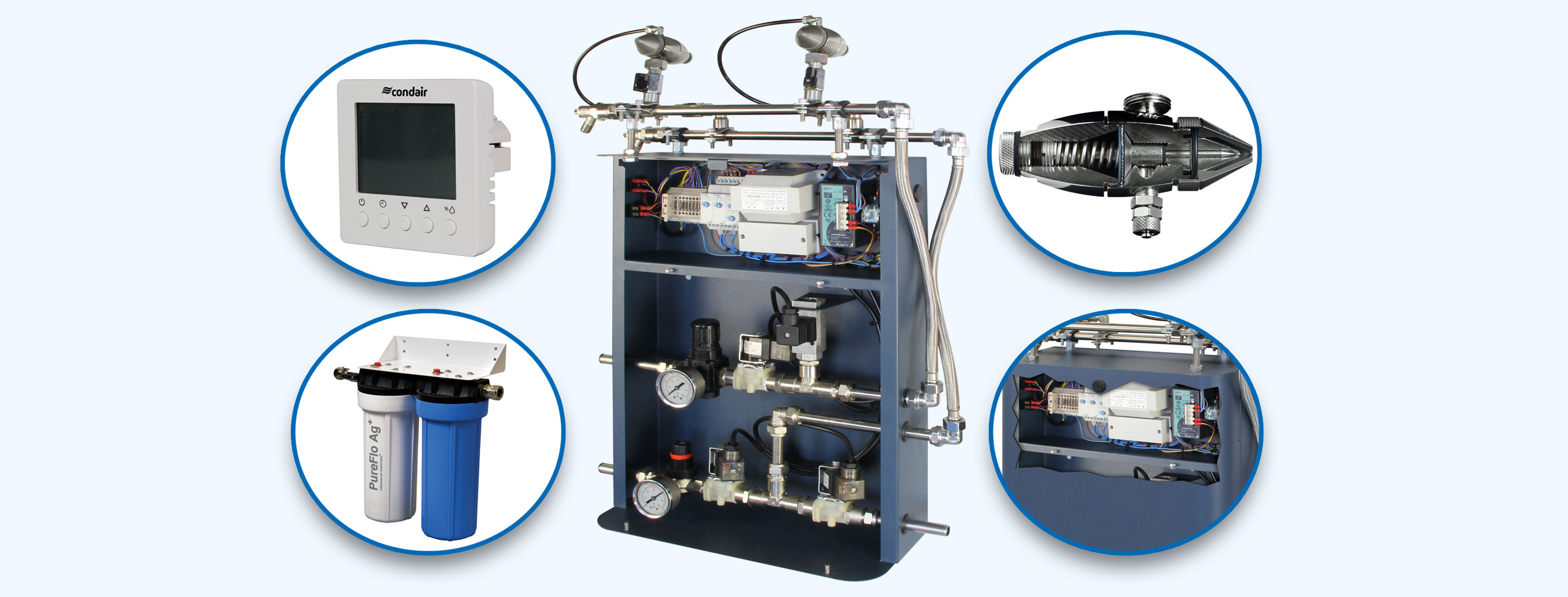

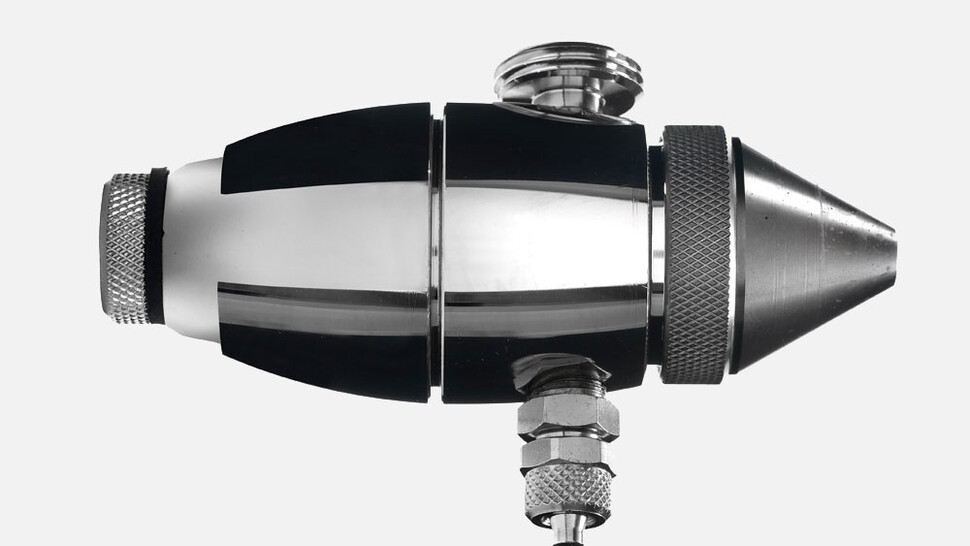

Self-cleaning nozzles

Precision engineered nozzles with a self-cleaning pin prevents blockages. Ideal for industrial environments.

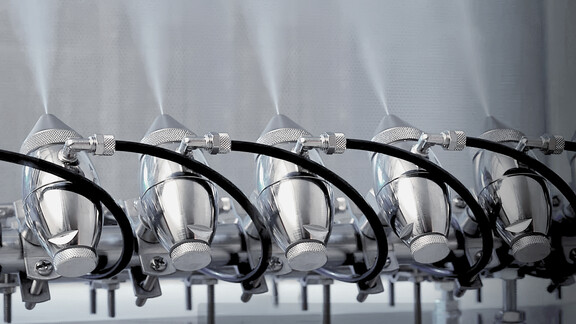

Directional nozzles

The nozzles can be adjusted horizontally or vertically for an ideal aerosol plume.

Humidistat with display

Allows the required room humidity to be set and monitored, which in turn controls the output of the humidifier.

Water filters

Optional PureFlo antibacterial filter to combat microbial growth, and a 5 micron particle filter.

Cabinet

IP54 rated (as standard) with all internal easily accessible. Electrical components are located separately above the water lines.

Downloads

Buy Condair Spare Parts

Spare Parts

Condair will help you identify exactly which component you need and ensure you receive it quickly and efficiently.

Frequently asked questions

How is the JS60C humidifier installed?

What water and compressed air quality is needed?

The allowable water pressure is 58–102 psi (4–7 bar) with minimal pressure fluctuations. The water supply should be cold, untreated potable water that complies with local drinking water regulations. The JetSpray Compact can also operate with reverse osmosis (RO) or demineralized water with a conductivity greater than 5 µS/cm and a resistivity not exceeding 0.2 MΩ.

The allowable air pressure is 65–145 psi (4.5–10 bar). The compressed air supply should be clean, dry, and oil-free. If these conditions cannot be ensured, an air filter and oil separator should be installed. When an air filter is used, the oil collector should be connected to an oil drain.

How often should the JS60C humidifier be serviced?

What is the energy consumption?

Discover Condair in Action

Projects and References

VMT Spinning Company, India

VMT Spinning Company has recently installed a JetSpray humidification system from Condair in its post winding section, at its state-of-the-art cotton production facility in Baddi, India, to maintain yarn quality and strength. The JetSpray humidifier was supplied and installed by Condair™s Indian representative, Regent Machine and Servicing, and is capable of delivering around 250 litres of moisture per hour to maintain the ideal air humidity.

Sabuj Agro Tea Factory, Bangladesh

The Sabuj Agro tea factory in Bangladesh has installed a Condair JetSpray humidification system to maintain the perfect humidity in its production facility and ensure the highest quality black tea.

By maintaining 95%RH in the factory, moisture loss from the cut leaves is significantly reduced. This improves the fermentation process, resulting in a more flavorsome tea with greater market value.

ICS Cool Energy for a Fish Factory

Condair's JetSpray humidifier is helping refrigeration equipment specialists ICS Cool Energy increase profits at a leading worldwide brand of canned fish by $1 million per year. By maintaining a high humidity around the fish after steaming, evaporative weight loss from the cooked fish has been reduced from approximately 5% to 0.67%. The humidification system is preventing up to 9.37 tons of product from simply evaporating each day between cooking and canning.
