Condair RS Resistive Steam Humidifier

Q: How accurate is humidity control with the Condair RS?

The Condair RS ensures very precise control of relative humidity. With standard tap water, accuracy is ±3% RH. When operated with reverse osmosis (RO) water treatment, it achieves an impressive ±1% RH.

Interested in the Condair RS?

Condair RS

Resistive Steam Humidifier

Innovative scale management removes the separated minerals from the steam cylinder during operation and automatically conveys them into the designated scale collecting tank. Scale deposits are thus continuously removed from the steam cylinder.

Condair RS Resistive Steam Humidifier

Top of page Features Product details Downloads FAQs References

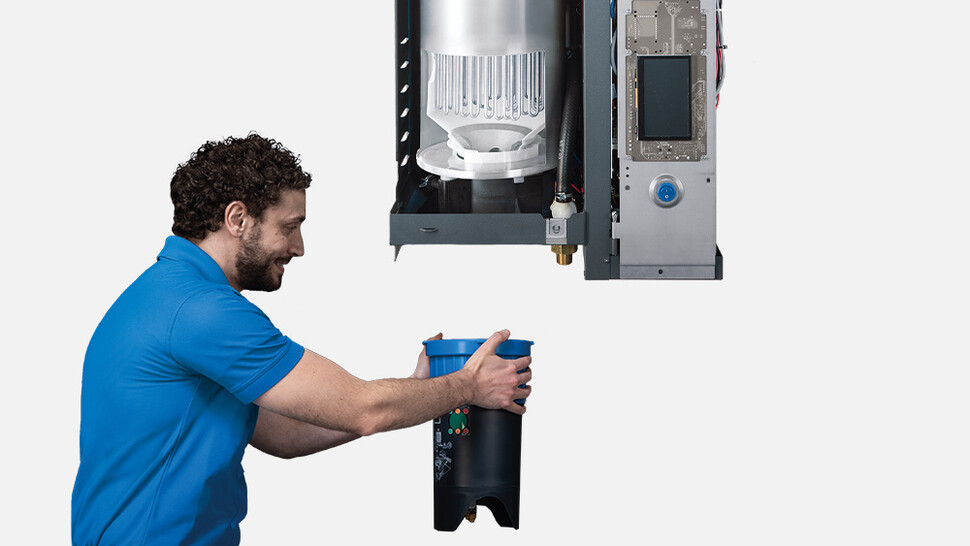

Technical Innovation That Solves the Scale Problem

Advanced steam cylinder design lets in-house staff remove scale easily. Deposits fall into a collection tank that can be drained without opening the unit. Regular removal improves performance, lowers service needs, and prevents drain blockages.

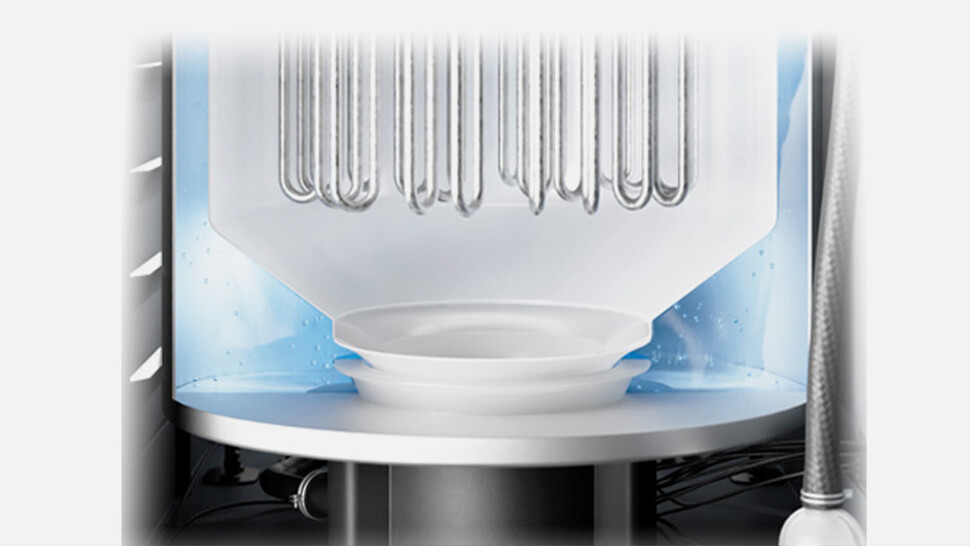

Cold Water Pool Protects Inlet and Outlet From Scale

Near the in- and outlet connections, the twin walled cylinder design of the unit creates a cold water pool which always remains below the temperature of scale formation. Water in- and outlet are therefore protected against scale deposition.

Robust Outdoor Housing for External Installation

The weatherproof powder coated galvanized steel housing allows the Condair OC to be installed outdoors. This saves valuable indoor space and ensures reliable steam humidification even in challenging environments.

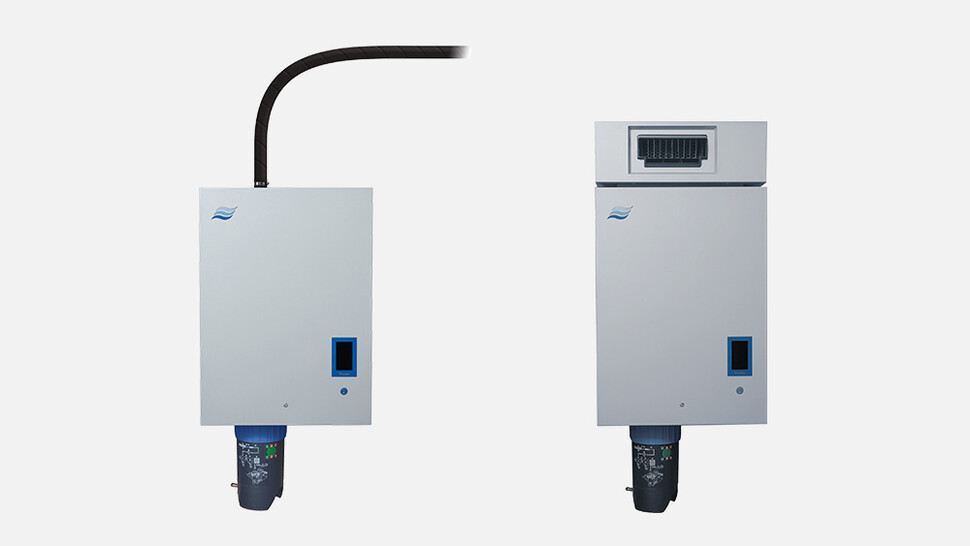

Steam Distribution Options

With steam hose for in-duct or blower pack for direct room humidification. The Condair steam pipe ensures optimal steam distribution with precise humidity delivery. Designed for efficient performance, it provides reliable indoor air quality and consistent humidification results.

Schematic layout

Professional planning is the basis for functional quality and energy efficiency. We are happy to assist you in the planning phase.

Steam outlet

Steam distribution options with steam hose for in-duct humidification with blower pack for direct room humidification

Steam Cylinder

Corrosion-resistant stainless steel cylinder

Resistive Heater

Condair RS resistive steam humidifiers can operate on mains water, or demineralised water, for close control and reduced servicing.

Schematic layout

Blowdown pump

Limescale collector

The location of the scale collection tank below the unit ensures very easy access. The tank can be removed and emptied easily without the need for opening the unit housing.

Touch Controller

State-of-the-art user interface offers simple control and advanced diagnostic reporting. Current and historic performance data can be called-up in real-time or accessed and analysed remotely via optional IoT (Internet of Things) connectivity.

Downloads

Buy Condair Spare Parts

Spare Parts

Condair will help you identify exactly which component you need and ensure you receive it quickly and efficiently.

Frequently asked questions

How accurate is humidity control with the Condair RS?

How does the Condair RS manage scale and how easy is maintenance?

The Condair RS features an integrated scale management system. Limescale is automatically separated from the stainless-steel cylinder and collected in an external scale tank, which can be drained at the push of a button. This makes maintenance quick and easy. In addition, the cold-water pool design prevents blockages in the water inlet and drain by keeping these areas cool.

What control and automation options does the Condair RS offer?

The Condair RS comes with a touchscreen controller for intuitive operation, providing full access to system parameters, service reminders, and automatic safety shutdowns.  It also supports seamless integration with building management systems (BMS) via BACnet (IP and MSTP) and Modbus as standard. A USB port allows trend and fault data logging as well as software updates.
